LHT GPac™ Pallets, 4 – Way Entry & Rack-able
GPac™ Pallet, is green pallet for green packaging, the most convenience to move your products anywhere and anytime around the world lauded for innovation, space storage, nailless and green practices.
|
Models |
Sizes (mm) |
Weight (kgs) |
Dynamic Load (kgs) |
Static Load (kgs) |
Racking Load (kgs) |
|

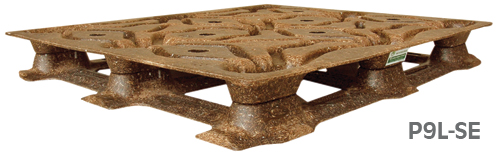

P9L-SE |
1219 x 1018 x 140 |
19 +/- 1 |
1,000 |
4,000 |
1,000 |
|

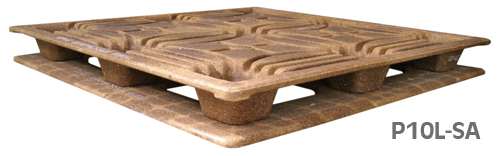

P10L-SA |
1100 x 1100 x 138 |
23.5 +/- 1 |
1,500 |
6,000 |
1,000 |
|

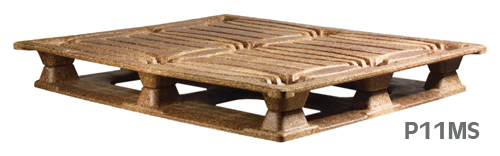

P11MS |
1300 x 1100 x 145 |
27.5 +/- 1 |
1,500 |
6,000 |
1,000 |
Remark: Tolerance of weight +/- 1kg, Length and width +/-3mm
Assemble at customer side, Nestable before assemble. It safely self stack and to put up racking.
